Yamaha FM Sound Chips and the Rise of Digital Synthesis

1. Overview

During the 1980s and early 1990s, Yamaha’s FM (Frequency Modulation) sound chips revolutionized both digital synthesis and electronic entertainment audio. From professional synthesizers to home computers, arcade boards, and game consoles, these integrated circuits defined the sound of an entire technological era.

Based on research by Dr. John Chowning at Stanford University in the early 1970s, FM synthesis offered a computationally efficient way to generate harmonically rich, dynamically evolving tones using purely mathematical operations — ideal for implementation on limited digital hardware. Yamaha licensed this technology from Stanford in 1973, leading to a multi-decade line of specialized FM chips optimized for musical sound generation.

1760274794475

ORIGIN OF THE DX7 & FM SYNTHESIS (YouTube)

2. The Philosophy Behind Yamaha FM Design

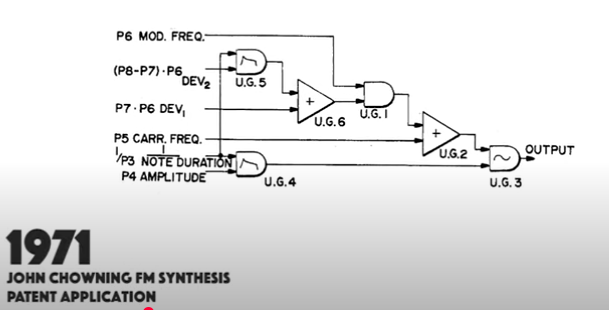

Unlike analog synthesizers that relied on voltage-controlled oscillators and filters, Yamaha’s FM chips produced sound digitally, using precise phase modulation between operators (digital oscillators). Each chip in the FM family integrated several of these operators per “channel,” combined through predefined algorithms to produce complex harmonic structures.

1760275524184

The design philosophy emphasized:

  • High expressivity with minimal hardware complexity.
  • Deterministic, phase-accurate digital synthesis — no analog drift.
  • Scalability, allowing the same FM principles to power both inexpensive home devices and high-end synthesizers.

3. Evolution of Yamaha FM OPx Chips

3.1 Early Generations (OPM / OPN)

The first generation of Yamaha FM ICs (e.g., YM2151 – OPM, YM2203 – OPN) introduced 4-operator FM synthesis with up to eight simultaneous channels. These chips were used in arcade systems, early Japanese PCs (NEC, Sharp), and professional synthesizers. Their architecture became the template for later designs, combining multiple FM channels, SSG/PSG sound generators, and sometimes ADPCM sample playback.

3.2 Compact and Cost-Reduced Designs (OPLL, OPL)

As FM synthesis entered consumer electronics, Yamaha produced simplified, cost-optimized variants such as the YM2413 (OPLL) and YM3526 (OPL). These chips reduced operator count (to 2-op), simplified envelopes, and often relied on preset instruments — enabling FM sound in affordable keyboards, MSX computers, and early sound cards.

3.3 Hybrid and Advanced Models (OPNA / OPNB / OPL3 / OPL4)

Later generations, such as YM2608 (OPNA) and YM2610 (OPNB), combined FM synthesis with sample playback and rhythm channels, paving the way for more realistic instrumentation. The YMF262 (OPL3) extended OPL2 by supporting 4-operator pairing and stereo output, while YMF278 (OPL4) integrated a wavetable/PCM engine, representing the culmination of Yamaha’s hybrid FM design.

1760272158342

4. Musical and Industrial Impact

Yamaha FM chips became the sound core of:

  • Arcade and console sound systems (e.g., Sega Genesis / Mega Drive, Neo Geo, PC-98).
  • Personal computers (AdLib, Sound Blaster, MSX, PC-88/98).
  • Yamaha’s own synthesizers (DX/TX series, PSR keyboards).

These chips’ distinctive tonal characteristics — metallic bells, electric pianos, bright brass, and synthetic percussion — defined the signature sound of 1980s–1990s digital music. The clarity, consistency, and cost-effectiveness of Yamaha FM made it the dominant sound synthesis standard in electronic entertainment for nearly two decades.

5. Technical Legacy

Even decades later, Yamaha’s FM chips remain deeply influential:

  • Modern virtual instruments and emulators (e.g., Dexed, Nuked OPN2, MAME) precisely model their digital logic to reproduce authentic FM sound.
  • Contemporary synthesizers and DAWs still use FM synthesis principles derived directly from these early ICs.
  • The mathematical and architectural design of Yamaha’s FM chips laid the groundwork for real-time DSP synthesis, algorithmic sound design, and hardware-based sound engines that followed.

In short, Yamaha’s FM chip line represents the intersection of digital signal processing, musical expressiveness, and hardware efficiency — a technological achievement that continues to resonate in both music production and computer sound engineering today.
